I attached the screenshot and colored confusing parts. What's the meaning of 1) 9001 2) A5 3) (VH)(H) VORTACW?

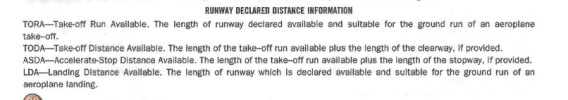

9001 is the TakeOff Run Area, TODA is takeoff Distance Available, LDA is landing distance available, ASDA is Accellerate Stop Distance Available. In this case it tells you that you have 9001 available for the takeoff roll. See this graphic:


A5 the type of lighting. This means Medium Intensity Approach Lighting System (See page 132 of the Aeronautical chart users guide). The little dot at the top of the circle means that there are sequenced flashers (rabbit lights). https://aeronav.faa.gov/user_guide/cug-complete_20250612.pdf

The VH and H explain the standard service volume of that VORTAC. The (H) is the old volumes desigantion, the (VH) is the newer style. See 1-1-8 in the AIM.
