Is there a secret decoder ring for Lycoming engine variant numbers?

[Kiddo's Driver]

The only difference I can figure out between an IO360-C1D6
and an
IO360-A1B6
is that the C1D6 has a rear mounted injector.
Is there a secret decoder ring for this?



[Bell206]

Is there a secret decoder ring for this?

TCDS



[Kiddo's Driver]

Not the TCDS, but gives the TC numbers for each variant:

https://www.lycoming.com/sites/default/files/attachments/O-HO-IO-HIO-AIO%2520%2526%2520TIO-360%2520Oper%2520Manual%252060297-12.pdf



[Kiddo's Driver]

Got it, thanks!

Edit: removed useless link and attached PDF.



[Bell206]

Not the TCDS

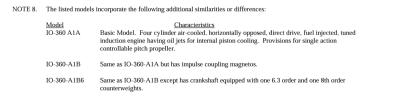

TCDS:



[Kiddo's Driver]

The TCDS was what I really needed. It lists the exact locations of components and connections so that I can see the difference.



[Domenick]

This may help:

Lycoming Nomenclature Made Easy! | EAA

Lycoming Nomenclature Made Easy! | EAA

www.eaa.org

and this: Lycoming SSP-110-2 Certified Engines

https://www.lycoming.com/sites/default/files/attachments/SSP-110-2%2520Certified%2520Engines.pdf
